04 Architecture Comparisons

Comparing different number of dilated convolutional layers, different number of channels in each dilated convolutational layer, and different kernel sizes for the first layer.

1 Train Parameters

TF_LIST = ["Nanog", "Klf4", "Oct4", "Sox2"]
INPUT_DIR = "/home/philipp/BPNet/input/"
BATCH_SIZE = 64
ALPHA = 10
MAX_EPOCHS = 100
EARLY_STOP_PATIENCE = 4
RESTORE_BEST_WEIGHTS = True
plot_while_train = False
retrain_conv_layers = False
retrain_channel = False
retrain_kern_size = False

2 Libraries

import matplotlib.pyplot as plt
import numpy as np
plt.style.use('dark_background')
import torch
import torch.nn as nn
import torch.nn.functional as F
import torch.optim as optim
from torch.utils.data import Dataset, DataLoader
from src.architectures import BPNet
from src.utils import ChIP_Nexus_Dataset, dummy_shape_predictions, dummy_total_counts_predictions
from src.loss import neg_log_multinomial
from src.metrics import permute_array, bin_max_values, bin_counts_amb, binary_labels_from_counts, compute_auprc_bins
color_pal = {"Oct4": "#CD5C5C", "Sox2": "#849EEB", "Nanog": "#FFE03F", "Klf4": "#92C592", "patchcap": "#827F81"}
import sklearn.metrics as skm
import pandas as pd
import seaborn as sns

device = "cuda" if torch.cuda.is_available() else "cpu"
print(f"Using {device} device")

Using cuda device

3 Data

train_dataset = ChIP_Nexus_Dataset(set_name="train",
                                   input_dir=INPUT_DIR,
                                   TF_list=TF_LIST)
train_dataset

ChIP_Nexus_Dataset
Set: train
TFs: ['Nanog', 'Klf4', 'Oct4', 'Sox2']
Size: 93904

Determine \(\lambda\) hyperparameter

lambda_param = (np.median(train_dataset.tf_counts.sum(axis=-1), axis=0)).mean() / 10
lambda_param

11.7375

dummy_shape_predictions(train_dataset)

Unfiform Prediction Loss:   490.46
Mean Prediction Loss:       438.73
Perfect Prediction Loss:    133.78

dummy_total_counts_predictions(train_dataset)

Mean Prediction Loss:       0.71
Perfect Prediction Loss:    0.00

tune_dataset = ChIP_Nexus_Dataset(set_name="tune",
                                  input_dir=INPUT_DIR,
                                  TF_list=TF_LIST)
tune_dataset

ChIP_Nexus_Dataset
Set: tune
TFs: ['Nanog', 'Klf4', 'Oct4', 'Sox2']
Size: 29277

dummy_shape_predictions(tune_dataset)

Unfiform Prediction Loss:   494.43
Mean Prediction Loss:       442.46
Perfect Prediction Loss:    135.56

4 Different Number of Dilated Convolutational Layers

4.1 Training (Only Shape Prediction)

n_layers_list = np.arange(1,16)

if retrain_conv_layers:
  for n_layers in n_layers_list:
    model = BPNet(n_dil_layers=n_layers, TF_list=TF_LIST, pred_total=False, bias_track=True).to(device)
    optimizer = optim.Adam(model.parameters(), lr=4*1e-4)

    train_loader=DataLoader(train_dataset, batch_size=BATCH_SIZE, shuffle=True, num_workers=0, pin_memory=True)
    tune_loader=DataLoader(tune_dataset, batch_size=BATCH_SIZE, shuffle=False, num_workers=0, pin_memory=True)

    train_loss, test_loss = [], []
    patience_counter = 0

    for epoch in range(MAX_EPOCHS):
      model.train()
      train_loss_epoch = []
      for one_hot, tf_counts, ctrl_counts, ctrl_smooth in train_loader:
        one_hot, tf_counts, ctrl_counts, ctrl_smooth = one_hot.to(device), tf_counts.to(device), ctrl_counts.to(device), ctrl_smooth.to(device)
        optimizer.zero_grad()
        profile_pred = model.forward(sequence=one_hot, bias_raw=ctrl_counts, bias_smooth=ctrl_smooth)
        loss = neg_log_multinomial(k_obs=tf_counts, p_pred=profile_pred, device=device)
        train_loss_epoch.append(loss.item())
        loss.backward()
        optimizer.step()
      train_loss.append(sum(train_loss_epoch)/len(train_loss_epoch))

      # evaluation part
      test_loss_epoch = []
      with torch.no_grad():
          for one_hot, tf_counts, ctrl_counts, ctrl_smooth in tune_loader:
              one_hot, tf_counts, ctrl_counts, ctrl_smooth = one_hot.to(device), tf_counts.to(device), ctrl_counts.to(device), ctrl_smooth.to(device)
              profile_pred = model.forward(sequence=one_hot, bias_raw=ctrl_counts, bias_smooth=ctrl_smooth)
              loss = neg_log_multinomial(k_obs=tf_counts, p_pred=profile_pred, device=device)
              test_loss_epoch.append(loss.item())
          test_loss.append(sum(test_loss_epoch)/len(test_loss_epoch))

      if test_loss[-1] > np.array(test_loss).min():
        patience_counter += 1
      else:
        patience_counter = 0
        best_state_dict = model.state_dict()

      if patience_counter == EARLY_STOP_PATIENCE:
        break

    if RESTORE_BEST_WEIGHTS:
      model.load_state_dict(best_state_dict)

    # plot train and test loss
    plt.plot(np.arange(epoch+1), np.array(train_loss), label="train")
    plt.plot(np.arange(epoch+1), np.array(test_loss), label="test")
    plt.xlabel("Epoch")
    plt.ylabel("Loss")
    plt.legend()
    plt.show()

    # save the model
    torch.save(obj=model, f=f"/home/philipp/BPNet/trained_models/{n_layers}_dil_layers_model.pt")

4.2 Evaluation

test_dataset = ChIP_Nexus_Dataset(set_name="test",
                                  input_dir=INPUT_DIR,
                                  TF_list=TF_LIST)
test_dataset

ChIP_Nexus_Dataset
Set: test
TFs: ['Nanog', 'Klf4', 'Oct4', 'Sox2']
Size: 27727

save_scores = []
test_dataloader = DataLoader(test_dataset, batch_size=1, shuffle=False, num_workers=0, pin_memory=True)
true_counts = test_dataset.tf_counts.copy()
for n in n_layers_list:
  model = torch.load(f"/home/philipp/BPNet/trained_models/{n}_dil_layers_model.pt")
  # make predictions
  pred = torch.zeros(test_dataset.tf_counts.shape, dtype=torch.float32).to(device)
  with torch.no_grad():
      for batch_idx, data in enumerate(test_dataloader):
          one_hot, tf_counts, ctrl_counts, ctrl_smooth = data
          one_hot, tf_counts, ctrl_counts, ctrl_smooth = one_hot.to(device), tf_counts.to(device), ctrl_counts.to(device), ctrl_smooth.to(device)
          profile_pred = model.forward(sequence=one_hot, bias_raw=ctrl_counts, bias_smooth=ctrl_smooth)
          pred[batch_idx, :, :, :] = profile_pred
  all_pred = pred.cpu().numpy().copy()
  assert np.allclose(all_pred.sum(axis=-1), 1)

  for i, tf in enumerate(TF_LIST): # loop over the four TFs
      pred_tf = all_pred[:, i, :, :]
      counts_tf = true_counts[:, i, :, :]
      labels, predictions, random = binary_labels_from_counts(counts_tf, pred_tf)
      auprc_score = skm.average_precision_score(labels, predictions)
      save_scores.append({"tf": tf,
                          "n_layers":n,
                          "auprc": auprc_score})

df = pd.DataFrame(save_scores)
df.to_csv("/home/philipp/BPNet/out/dil_layers_auprc.csv")

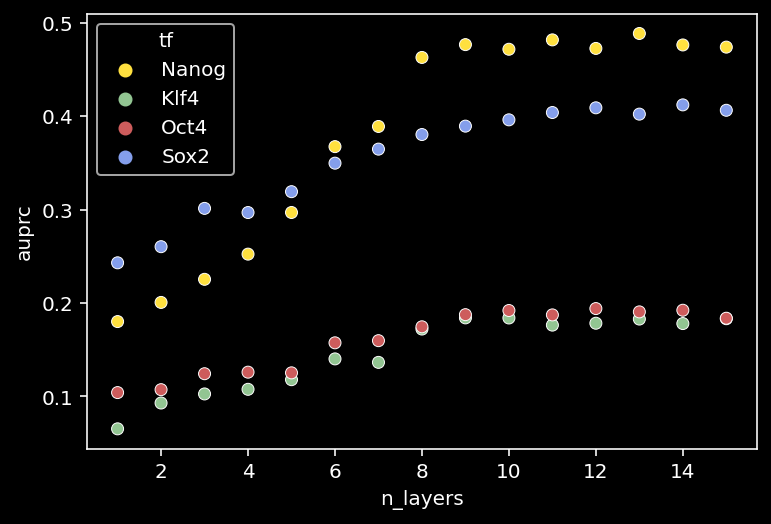

sns.scatterplot(data=df, x="n_layers", y="auprc", hue="tf", palette=color_pal)
plt.show()

5 Different Number of Dilated Convolutational Layers

5.1 Training (Only Shape Prediction)

n_channel_list = np.array([2, 4, 8, 16, 32, 64, 128, 256])

if retrain_channel:
  for n_channel in n_channel_list:
    model = BPNet(n_dil_layers=9, TF_list=TF_LIST, pred_total=False, bias_track=True, conv_channels=n_channel).to(device)
    optimizer = optim.Adam(model.parameters(), lr=4*1e-4)

    train_loader=DataLoader(train_dataset, batch_size=BATCH_SIZE, shuffle=True, num_workers=0, pin_memory=True)
    tune_loader=DataLoader(tune_dataset, batch_size=BATCH_SIZE, shuffle=False, num_workers=0, pin_memory=True)

    train_loss, test_loss = [], []
    patience_counter = 0

    for epoch in range(MAX_EPOCHS):
      model.train()
      train_loss_epoch = []
      for one_hot, tf_counts, ctrl_counts, ctrl_smooth in train_loader:
        one_hot, tf_counts, ctrl_counts, ctrl_smooth = one_hot.to(device), tf_counts.to(device), ctrl_counts.to(device), ctrl_smooth.to(device)
        optimizer.zero_grad()
        profile_pred = model.forward(sequence=one_hot, bias_raw=ctrl_counts, bias_smooth=ctrl_smooth)
        loss = neg_log_multinomial(k_obs=tf_counts, p_pred=profile_pred, device=device)
        train_loss_epoch.append(loss.item())
        loss.backward()
        optimizer.step()
      train_loss.append(sum(train_loss_epoch)/len(train_loss_epoch))

      # evaluation part
      test_loss_epoch = []
      with torch.no_grad():
          for one_hot, tf_counts, ctrl_counts, ctrl_smooth in tune_loader:
              one_hot, tf_counts, ctrl_counts, ctrl_smooth = one_hot.to(device), tf_counts.to(device), ctrl_counts.to(device), ctrl_smooth.to(device)
              profile_pred = model.forward(sequence=one_hot, bias_raw=ctrl_counts, bias_smooth=ctrl_smooth)
              loss = neg_log_multinomial(k_obs=tf_counts, p_pred=profile_pred, device=device)
              test_loss_epoch.append(loss.item())
          test_loss.append(sum(test_loss_epoch)/len(test_loss_epoch))

      if test_loss[-1] > np.array(test_loss).min():
        patience_counter += 1
      else:
        patience_counter = 0
        best_state_dict = model.state_dict()

      if patience_counter == EARLY_STOP_PATIENCE:
        break

    if RESTORE_BEST_WEIGHTS:
      model.load_state_dict(best_state_dict)

    # plot train and test loss
    plt.plot(np.arange(epoch+1), np.array(train_loss), label="train")
    plt.plot(np.arange(epoch+1), np.array(test_loss), label="test")
    plt.xlabel("Epoch")
    plt.ylabel("Loss")
    plt.legend()
    plt.show()

    # save the model
    torch.save(obj=model, f=f"/home/philipp/BPNet/trained_models/{n_channel}_conv_channel_model.pt")

5.2 Evaluation

test_dataset = ChIP_Nexus_Dataset(set_name="test",
                                  input_dir=INPUT_DIR,
                                  TF_list=TF_LIST)
test_dataset

ChIP_Nexus_Dataset
Set: test
TFs: ['Nanog', 'Klf4', 'Oct4', 'Sox2']
Size: 27727

save_scores = []
test_dataloader = DataLoader(test_dataset, batch_size=1, shuffle=False, num_workers=0, pin_memory=True)
true_counts = test_dataset.tf_counts.copy()
for n in n_channel_list:
  model = torch.load(f"/home/philipp/BPNet/trained_models/{n}_conv_channel_model.pt")
  # make predictions
  pred = torch.zeros(test_dataset.tf_counts.shape, dtype=torch.float32).to(device)
  with torch.no_grad():
      for batch_idx, data in enumerate(test_dataloader):
          one_hot, tf_counts, ctrl_counts, ctrl_smooth = data
          one_hot, tf_counts, ctrl_counts, ctrl_smooth = one_hot.to(device), tf_counts.to(device), ctrl_counts.to(device), ctrl_smooth.to(device)
          profile_pred = model.forward(sequence=one_hot, bias_raw=ctrl_counts, bias_smooth=ctrl_smooth)
          pred[batch_idx, :, :, :] = profile_pred
  all_pred = pred.cpu().numpy().copy()
  assert np.allclose(all_pred.sum(axis=-1), 1)

  for i, tf in enumerate(TF_LIST): # loop over the four TFs
      pred_tf = all_pred[:, i, :, :]
      counts_tf = true_counts[:, i, :, :]
      labels, predictions, random = binary_labels_from_counts(counts_tf, pred_tf)
      auprc_score = skm.average_precision_score(labels, predictions)
      save_scores.append({"tf": tf,
                          "n_channels":n,
                          "auprc": auprc_score})

df = pd.DataFrame(save_scores)
df.to_csv("/home/philipp/BPNet/out/conv_channel_auprc.csv")

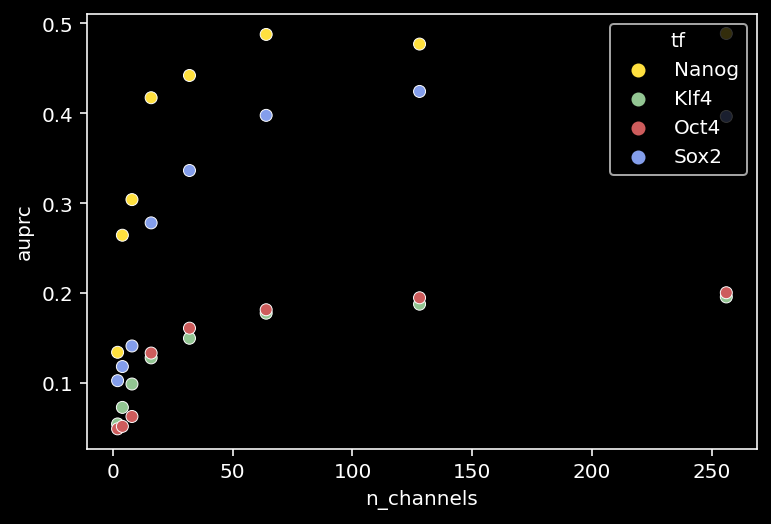

sns.scatterplot(data=df, x="n_channels", y="auprc", hue="tf", palette=color_pal)
plt.show()

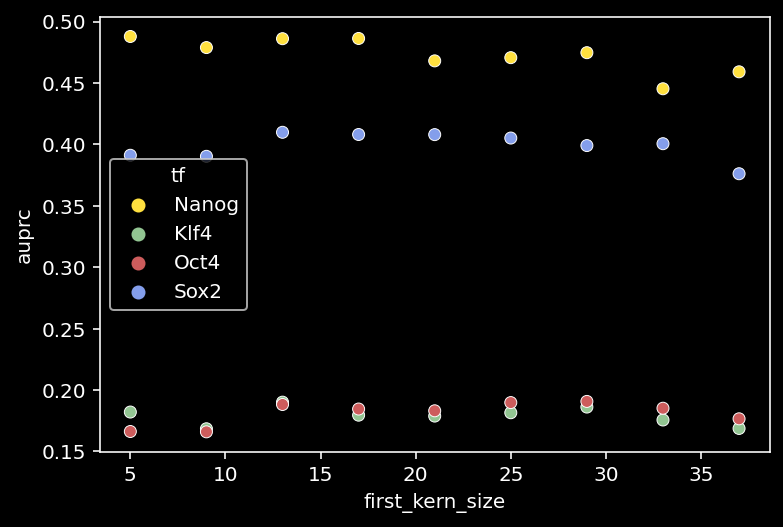

6 Different Sizes of the first Kernel

6.1 Training (Only Shape Prediction)

kernel_sizes = np.array([5, 9, 13, 17, 21, 25, 29, 33, 37])

if retrain_kern_size:
  for kern_size in kernel_sizes:
    model = BPNet(n_dil_layers=9, TF_list=TF_LIST, pred_total=False, bias_track=True, conv_channels=64, size_first_kernel=kern_size).to(device)
    optimizer = optim.Adam(model.parameters(), lr=4*1e-4)

    train_loader=DataLoader(train_dataset, batch_size=BATCH_SIZE, shuffle=True, num_workers=0, pin_memory=True)
    tune_loader=DataLoader(tune_dataset, batch_size=BATCH_SIZE, shuffle=False, num_workers=0, pin_memory=True)

    train_loss, test_loss = [], []
    patience_counter = 0

    for epoch in range(MAX_EPOCHS):
      model.train()
      train_loss_epoch = []
      for one_hot, tf_counts, ctrl_counts, ctrl_smooth in train_loader:
        one_hot, tf_counts, ctrl_counts, ctrl_smooth = one_hot.to(device), tf_counts.to(device), ctrl_counts.to(device), ctrl_smooth.to(device)
        optimizer.zero_grad()
        profile_pred = model.forward(sequence=one_hot, bias_raw=ctrl_counts, bias_smooth=ctrl_smooth)
        loss = neg_log_multinomial(k_obs=tf_counts, p_pred=profile_pred, device=device)
        train_loss_epoch.append(loss.item())
        loss.backward()
        optimizer.step()
      train_loss.append(sum(train_loss_epoch)/len(train_loss_epoch))

      # evaluation part
      test_loss_epoch = []
      with torch.no_grad():
          for one_hot, tf_counts, ctrl_counts, ctrl_smooth in tune_loader:
              one_hot, tf_counts, ctrl_counts, ctrl_smooth = one_hot.to(device), tf_counts.to(device), ctrl_counts.to(device), ctrl_smooth.to(device)
              profile_pred = model.forward(sequence=one_hot, bias_raw=ctrl_counts, bias_smooth=ctrl_smooth)
              loss = neg_log_multinomial(k_obs=tf_counts, p_pred=profile_pred, device=device)
              test_loss_epoch.append(loss.item())
          test_loss.append(sum(test_loss_epoch)/len(test_loss_epoch))

      if test_loss[-1] > np.array(test_loss).min():
        patience_counter += 1
      else:
        patience_counter = 0
        best_state_dict = model.state_dict()

      if patience_counter == EARLY_STOP_PATIENCE:
        break

    if RESTORE_BEST_WEIGHTS:
      model.load_state_dict(best_state_dict)

    # plot train and test loss
    plt.plot(np.arange(epoch+1), np.array(train_loss), label="train")
    plt.plot(np.arange(epoch+1), np.array(test_loss), label="test")
    plt.xlabel("Epoch")
    plt.ylabel("Loss")
    plt.legend()
    plt.show()

    # save the model
    torch.save(obj=model, f=f"/home/philipp/BPNet/trained_models/{kern_size}_first_kern_size_model.pt")

6.2 Evaluation

test_dataset = ChIP_Nexus_Dataset(set_name="test",
                                  input_dir=INPUT_DIR,
                                  TF_list=TF_LIST)
test_dataset

ChIP_Nexus_Dataset
Set: test
TFs: ['Nanog', 'Klf4', 'Oct4', 'Sox2']
Size: 27727

save_scores = []
test_dataloader = DataLoader(test_dataset, batch_size=1, shuffle=False, num_workers=0, pin_memory=True)
true_counts = test_dataset.tf_counts.copy()
for n in kernel_sizes:
  model = torch.load(f"/home/philipp/BPNet/trained_models/{n}_first_kern_size_model.pt")
  # make predictions
  pred = torch.zeros(test_dataset.tf_counts.shape, dtype=torch.float32).to(device)
  with torch.no_grad():
      for batch_idx, data in enumerate(test_dataloader):
          one_hot, tf_counts, ctrl_counts, ctrl_smooth = data
          one_hot, tf_counts, ctrl_counts, ctrl_smooth = one_hot.to(device), tf_counts.to(device), ctrl_counts.to(device), ctrl_smooth.to(device)
          profile_pred = model.forward(sequence=one_hot, bias_raw=ctrl_counts, bias_smooth=ctrl_smooth)
          pred[batch_idx, :, :, :] = profile_pred
  all_pred = pred.cpu().numpy().copy()
  assert np.allclose(all_pred.sum(axis=-1), 1)

  for i, tf in enumerate(TF_LIST): # loop over the four TFs
      pred_tf = all_pred[:, i, :, :]
      counts_tf = true_counts[:, i, :, :]
      labels, predictions, random = binary_labels_from_counts(counts_tf, pred_tf)
      auprc_score = skm.average_precision_score(labels, predictions)
      save_scores.append({"tf": tf,
                          "first_kern_size": n,
                          "auprc": auprc_score})

df = pd.DataFrame(save_scores)
df.to_csv("/home/philipp/BPNet/out/first_kern_size_auprc.csv")
sns.scatterplot(data=df, x="first_kern_size", y="auprc", hue="tf", palette=color_pal)
plt.show()
